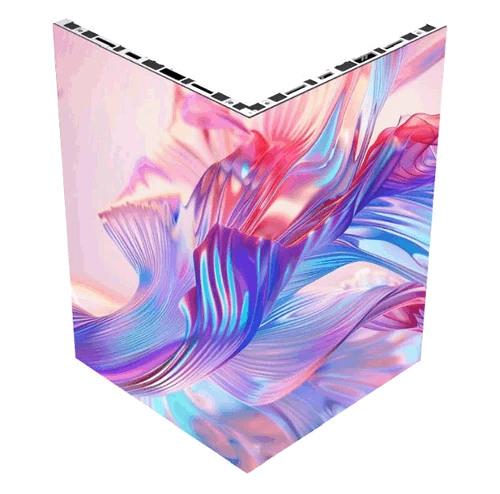

Innovative module
The innovative design of the module ensures that the viewing angle of the light beads is not affected when rotating the module direction Impact, there will be no color difference. Not only does it improve the visual comfort, but it also enhances the visual effect The attractiveness of fruit. |
|
|
Front maintenance
Easy and fully front maintenance with cableless-free design, very stable quality performance. |
|
Installation method
Support multiple installation methods such as lifting, wall mounted installation, and column shaped installation, suitable for more scenarios.
Hot Tags: indoor video wall led display, China indoor video wall led display manufacturers, suppliers, factory
Series Parameter
| Pixel pitch(mm) | 1.25 | 1.56 | 1.95 | 2.5 | 2.976 | 3.91 |
| Configuration | SMD1010 | SMD1212 | SMD1515 | SMD1515 | SMD1515 | SMD2020 |
| Module dimension(mm) | 250 x 250 | 250 x 250 | 250 x 250 | 250 x 250 | 250 x 250 | 250 x 250 |
| Module resolution | 200 x 200 | 160 x 160 | 128 x 128 | 100 x 100 | 84 x 84 | 64 x 64 |
| Pixel density(dots/㎡) | 640000 | 409600 | 262144 | 160000 | 112896 | 65536 |
| Panel size(mm) | 1000 x 500 /750 x500 /500 x 500 | 1000 x 500 /750 x500 /500 x 500 | 1000 x 500 /750 x500 /500 x 500 | 1000 x 500 /750 x500 /500 x 500 | 1000 x 500 /750 x500 /500 x 500 | 1000 x 500 /750 x500 /500 x 500 |
| Flatness error(mm) | ≤0.1 | ≤0.1 | ≤0.1 | ≤0.1 | ≤0.1 | ≤0.1 |
| Viewing (°) Horiz./Vert. | 160/160 | 160/160 | 160/160 | 160/160 | 160/160 | 160/160 |
| Brightness(cd/㎡) | 600 | 600 | 600 | 600 | 600 | 600 |
| Color temperature(K) | 5000~12000 | 5000~12000 | 5000~12000 | 5000~12000 | 5000~12000 | 5000~12000 |
| Contrast | 10000:1 | 10000:1 | 10000:1 | 10000:1 | 10000:1 | 10000:1 |
| Repetition frequency(Hz) | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 |
| Refresh frequency(Hz) | 3840 | 3840 | 3840 | 3840 | 3840 | 3840 |
| Gray scale(bit) | 14 | 14 | 14 | 14 | 14 | 14 |
| Ave. power(W/㎡) | 150 | 150 | 150 | 150 | 150 | 150 |
| Max power(W/㎡) | 350 | 350 | 350 | 350 | 350 | 350 |
| Scanning | 1/50 | 1/40 | 1/32 | 1/25 | 1/28 | 1/16 |
| Operating ℃/RH | 0~40 / 10~90% | |||||
| Storage ℃/RH | -40~60 / 10~90% | |||||
| Maintenance | Front | |||||
| Protection | IP31 | |||||
| Driving mode | Constant current driver | |||||
| Power requirements | AC110-220V±10%, 47~63Hz | |||||
| Life time(hrs) | 100,000 hrs | |||||
